P6 LED Screen Module Waterproof Outdoor LED Display Solution
Romio Technologies is a trusted manufacturer and installer of outdoor LED display solutions across India. Our P6 LED screen module is designed for advertisers, event companies, retail brands, and government projects that need a bright, sharp, and weatherproof video wall running non-stop, every day of the year. Every P6 outdoor LED screen module we ship is fully waterproof, tested against Indian weather conditions, and backed by a 3 year onsite warranty something very few suppliers in this market are willing to offer.
What Is a P6 LED Screen Module?
A P6 LED screen module is the basic building block of an outdoor LED video wall, where the distance between the center of one LED pixel and the next is 6mm. Multiple modules are joined together inside cabinets, and multiple cabinets are joined together to form the complete screen. The size of this pixel pitch decides how sharp the picture looks and how close a viewer needs to stand to see it clearly without noticing individual dots.
A P6 outdoor LED screen module sits in a practical sweet spot. It is sharp enough for viewers standing 6 to 8 meters away, yet it is priced far more reasonably than tighter pixel pitch modules like P2.5 or P3. This is exactly why the P6 LED screen module has become the most widely installed outdoor display module size in India for hoardings, showroom fronts, stadium screens, petrol pump displays, and highway digital billboards.
P6 Outdoor LED Module Specifications
Below is the full P6 LED module specification sheet we follow at Romio Technologies. These are the same industry-standard numbers used by leading LED manufacturers, so you can compare our module against any other supplier with full confidence.
| Parameter | Specification |
|---|---|
| Pixel Pitch | P6 (6mm) |
| Module Resolution | 32 × 32 Pixels |
| Module Size | 192mm × 192mm |
| Pixel Density | 27,778 Pixels/m² |
| LED Type | SMD 3535 RGB 3-in-1 (Nationstar or Equivalent) |
| Driving Mode | Dynamic 1/8 Scan, Constant Current |
| Cabinet Sizes Available | 576mm, 768mm & 960mm (Custom Sizes Available) |
| Cabinet Material | Aluminium or Steel |
| Weight | Approx. 45kg/m² |
| Brightness | 5,500–6,000 Nits (100-Level Adjustable) |
| Viewing Angle | 140° (Horizontal) / 140° (Vertical) |
| Recommended Viewing Distance | 6m – 60m |
| Refresh Rate | Up to 7680Hz |
| Grayscale | 14-Bit Processing, 16.7 Million Colours |
| Power Supply | AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 800W/m² |
| Average Power Consumption | 550W/m² |
| Waterproof Rating | IP65 (Front & Rear Waterproof) |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10% – 95% RH |
| Expected Lifespan | Up to 100,000 Hours |
| Control Distance | Ethernet up to 100m, Optical Fiber up to 5km |
| Model No | RT-0-P6 |
| Dead Pixel Rate | Less than 0.01% |
| Application | Outdoor Advertising, Billboards, Stadiums, Events, Shopping Malls, Transportation Hubs & Commercial Displays |
| Warranty | 3 Years Onsite Warranty (Pan India) |
P6 LED Screen Module Key Features

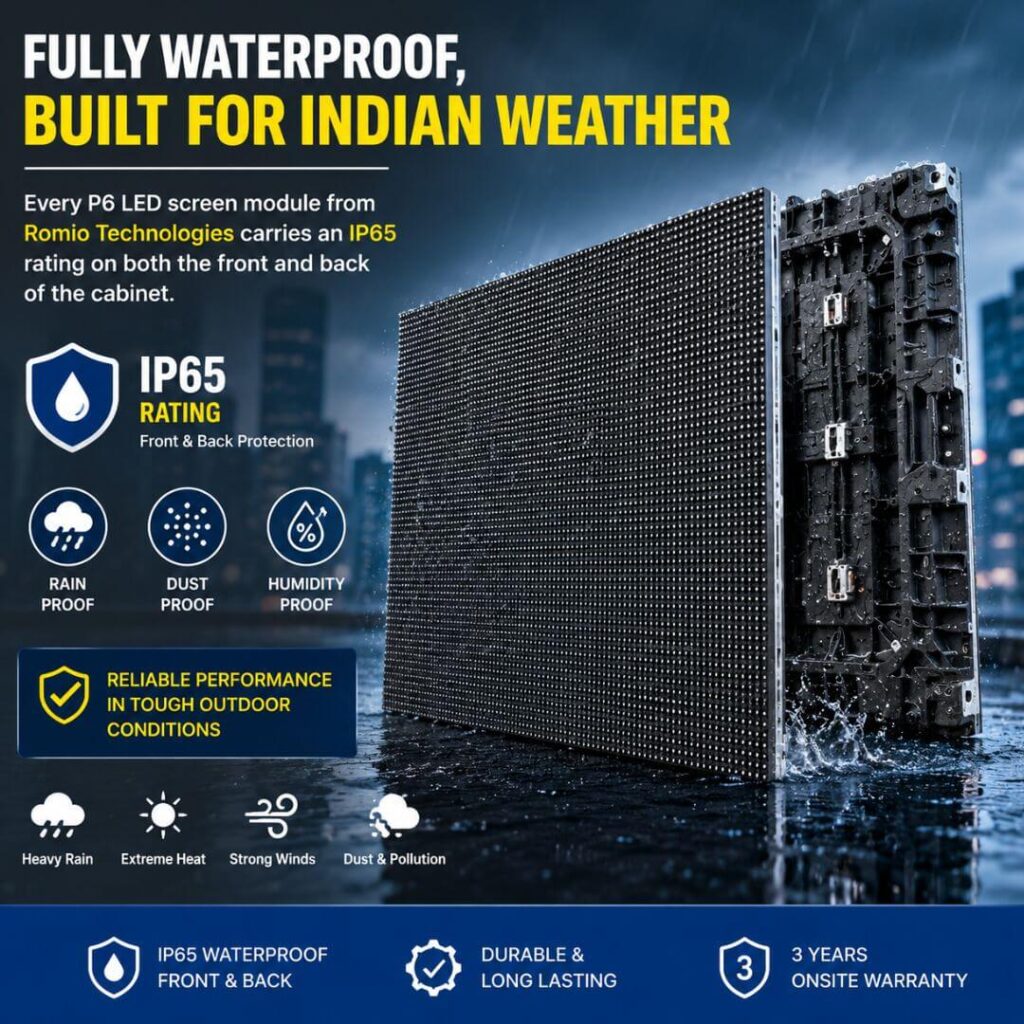

Fully Waterproof, Built for Indian Weather
Every P6 LED screen module from Romio Technologies carries an IP65 rating on both the front and back of the cabinet. This means rain, dust, and humidity will not damage the internal circuits — a very important factor for outdoor hoardings that face heavy monsoon rain across most Indian states.
High Brightness for Daylight Visibility
With brightness levels up to 5500 nits and automatic brightness sensors, the module adjusts itself according to sunlight and time of day. This keeps your advertisement or content visible even during the harshest afternoon sun, while saving power at night.
Wide Viewing Angle
A 140-degree viewing angle on both sides means your audience can view the screen clearly whether standing directly in front of it or walking past at an angle. This is especially useful for busy roads, highways, and market areas.

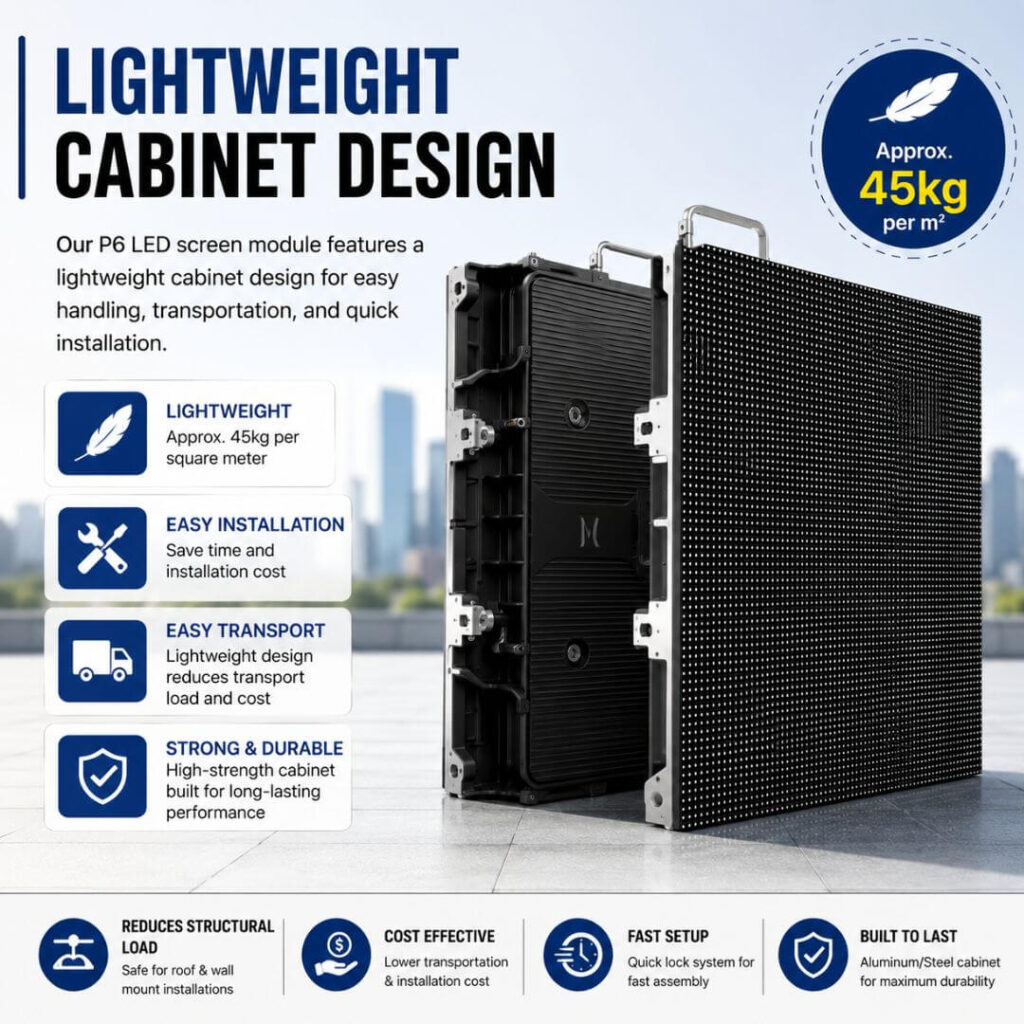

Lightweight Cabinet Design
With brightness levels up to 5500 nits and automatic brightness sensors, the module adjusts itself according to sunlight and time of day. This keeps your advertisement or content visible even during the harshest afternoon sun, while saving power at night.

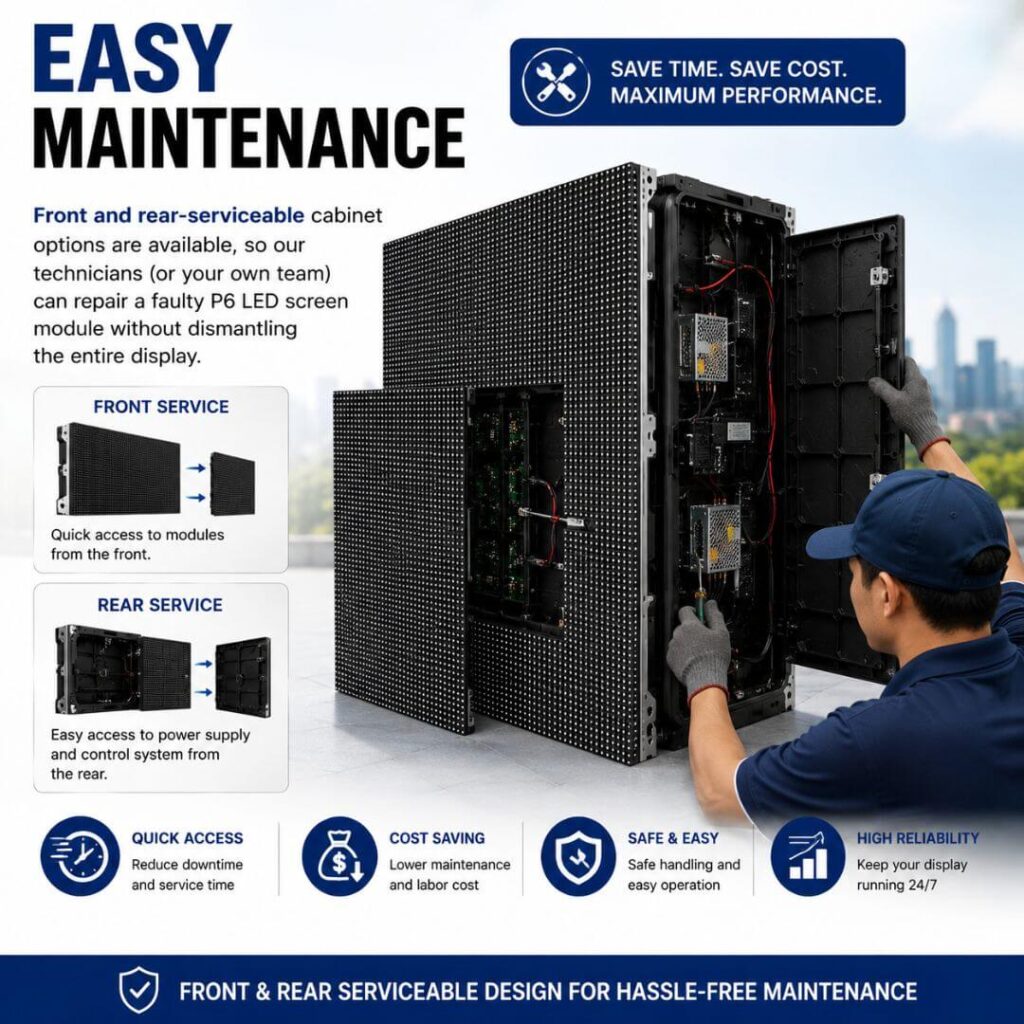

Easy Maintenance
Front and rear-serviceable cabinet options are available, so our technicians (or your own team) can repair a faulty P6 LED screen module without dismantling the entire display.
Energy Efficient
Average power draw of just 550W per square meter keeps your electricity bills manageable, especially for large-format installations running continuously.
P6 LED Module Size and Screen Customization
One question we hear from almost every client is about the P6 outdoor LED module size and how a full screen is put together. A single P6 LED screen module measures 192mm x 192mm and is fitted into cabinets of 576mm, 768mm, or 960mm you can combine any number of these cabinets to build a screen of virtually any width and height.
Common ready sizes we install for clients include:
– 6ft x 4ft screens for shop fronts and small hoardings
– 10ft x 6ft screens for showroom entrances and petrol pumps
– 20ft x 10ft and larger for stadium boards, highway hoardings, and event stages
Because the design is fully modular, Romio Technologies can custom-build any screen size to fit your wall, hoarding structure, or event stage including curved and creative shapes on request.
P6 Outdoor LED Module Price in India
The P6 outdoor LED module price in India depends on a few real factors, and being upfront about this helps you plan your budget correctly:
Screen size – total square footage required
Cabinet type – standard steel cabinet vs. lightweight rental-grade aluminium cabinet
Installation location – rooftop, wall-mounted, or ground-supported structures need different mounting work
Structure and civil work – whether Romio Technologies is also handling the supporting frame and electrical wiring
After-sales support – our 3 year onsite warranty is included as standard, unlike many vendors who charge extra for it
Because pricing changes based on project size and site conditions, we recommend sharing your screen size and location with our team for an accurate quotation rather than going by a generic online rate. Rates published on random websites are often for base modules only and do not include structure, installation, or long-term warranty support which is where hidden costs usually appear later.
P6 LED Wall vs P6 LED Video Wall Which One Do You Need?
People often search for “p6 led wall” and “p6 led video wall” thinking they are different products in most cases they refer to the same P6 LED screen module used for different purposes.
– A P6 LED wall usually refers to a fixed, permanently installed display for example, on a building facade, showroom wall, or highway hoarding.
– A P6 LED video wall usually refers to the same panel used for events, exhibitions, weddings, and corporate stages, where the screen is assembled and dismantled for each event, often on a rental basis.
Romio Technologies manufactures both fixed installation panels and rental-grade panels with quick-lock cabinets, so whichever use case matches your requirement, we have the right build for it.
Where Is a P6 Panel Outdoor Installation Best Used?
A P6 panel outdoor setup built from our LED screen modules works best in these common scenarios:
- Highway and roadside digital hoardings
- Retail and showroom entrance displays
- Stadium and sports ground perimeter and scoreboard screens
- Petrol pump and fuel station branding screens
- Railway station and metro station advertising panels
- Corporate building facades and entrance displays
- Outdoor event stages and exhibition backdrops
If your viewers will typically be standing 6 meters or further away, the P6 LED screen module gives you the most cost-effective clarity for the price.
Why Choose Romio Technologies for Your P6 LED Screen Module?
Pan India Service – Installation, supply, and support across every state in India
3 Years Onsite Warranty – Included as standard, not an extra add-on
Genuine Components – Branded LED chips, tested power supplies, and industrial-grade control systems
In-House Manufacturing Control – Quality checked before dispatch, not outsourced blindly
Dedicated After-Sales Team – Fast response for repairs, part replacement, and technical support
Custom Sizing – Screens built to your exact wall, hoarding, or stage dimensions
