P1.25 Indoor LED Display Ultra HD Small Pixel Pitch LED Screen
If you are searching for a sharp, bright and reliable P1.25 indoor LED display, you have landed at the right place. At Romio Technologies, we design and manufacture small pixel pitch LED screens that are built for close-viewing indoor spaces such as control rooms, retail stores, corporate lobbies, studios and event stages. With 15 years of experience in the LED and digital signage industry, we understand exactly what businesses need from a display sharp images, long-lasting hardware, and easy maintenance.
This page covers everything you need to know about our P1.25 indoor LED screen, including full specifications, features, uses and answers to common questions.
What Is a P1.25 Indoor LED Display?
A P1.25 indoor LED display is a fine pixel pitch LED video wall where the distance between two LED dots is only 1.25mm. Because the dots are placed so close together, the screen can show extremely detailed images even when viewers stand near the display. This makes it perfect for indoor locations where people are only a few feet away from the screen, unlike outdoor billboards that are viewed from a distance.
Our P1.25 indoor LED video wall is built in a standard 16:9 format with a cabinet size of 600mm x 337.5mm, making it simple to plan and install for boardrooms, showrooms, TV studios, airports and shopping malls.
Why Choose Romio Technologies for P1.25 Indoor LED Screens?
15+ Years of Industry Experience
Romio Technologies has spent over a decade and a half working exclusively in the LED display and digital signage field. During this time, we have supplied and installed LED walls for corporate offices, retail chains, government projects, event companies and broadcast studios. This experience helps us guide customers toward the right pixel pitch, cabinet size and brightness level for their specific space.
Complete Digital Signage Solutions Under One Roof
We don’t just sell LED panels. Romio Technologies offers end-to-end digital signage solutions — from site survey and product selection to installation, control system setup, and after-sales support. Whether you need a single video wall or a full digital signage network across multiple branches, our team handles the entire project.
Key Features of Our P1.25 Indoor LED Video Wall

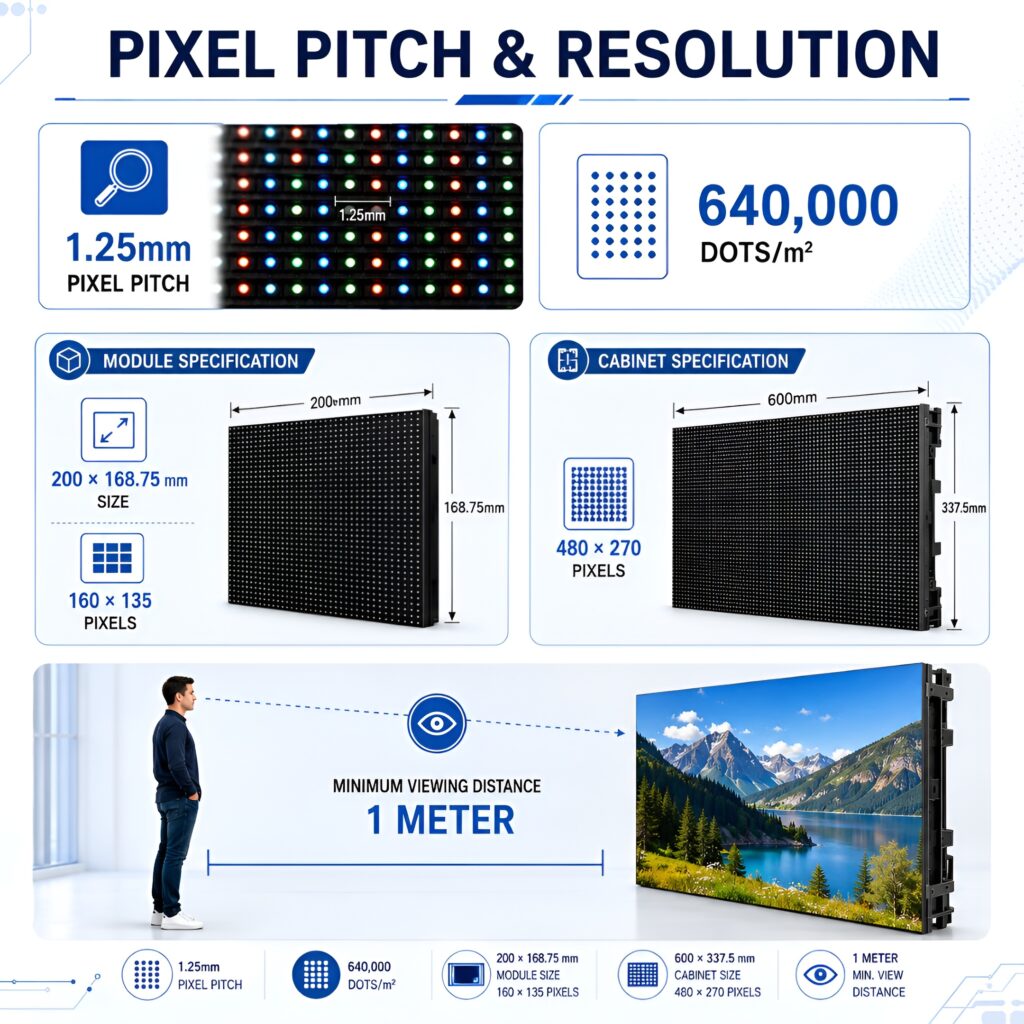

Pixel Pitch and Resolution
The screen uses a 1.25mm pixel pitch, giving a pixel density of 640,000 dots per square meter. Each module measures 200mm x 168.75mm with a resolution of 160 x 135 pixels, and each cabinet carries a resolution of 480 x 270 pixels. This level of detail makes the display suitable for content viewed from as close as one meter away.

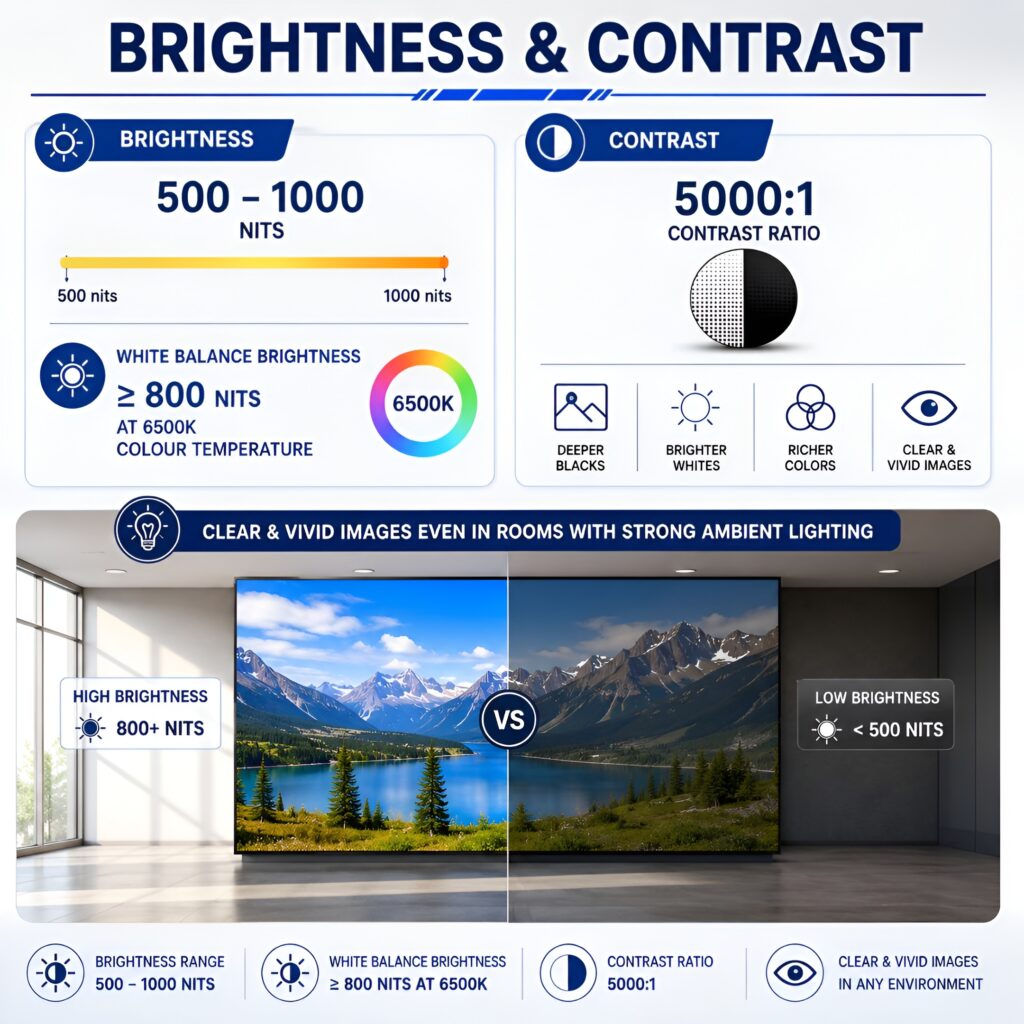

Brightness and Contrast
Brightness ranges between 500 to 1000 nits, with white balance brightness reaching 800 nits or higher at 6500K colour temperature. Combined with a contrast ratio of 5000:1, the screen produces images that stay clear and vivid even in rooms with strong ambient lighting.

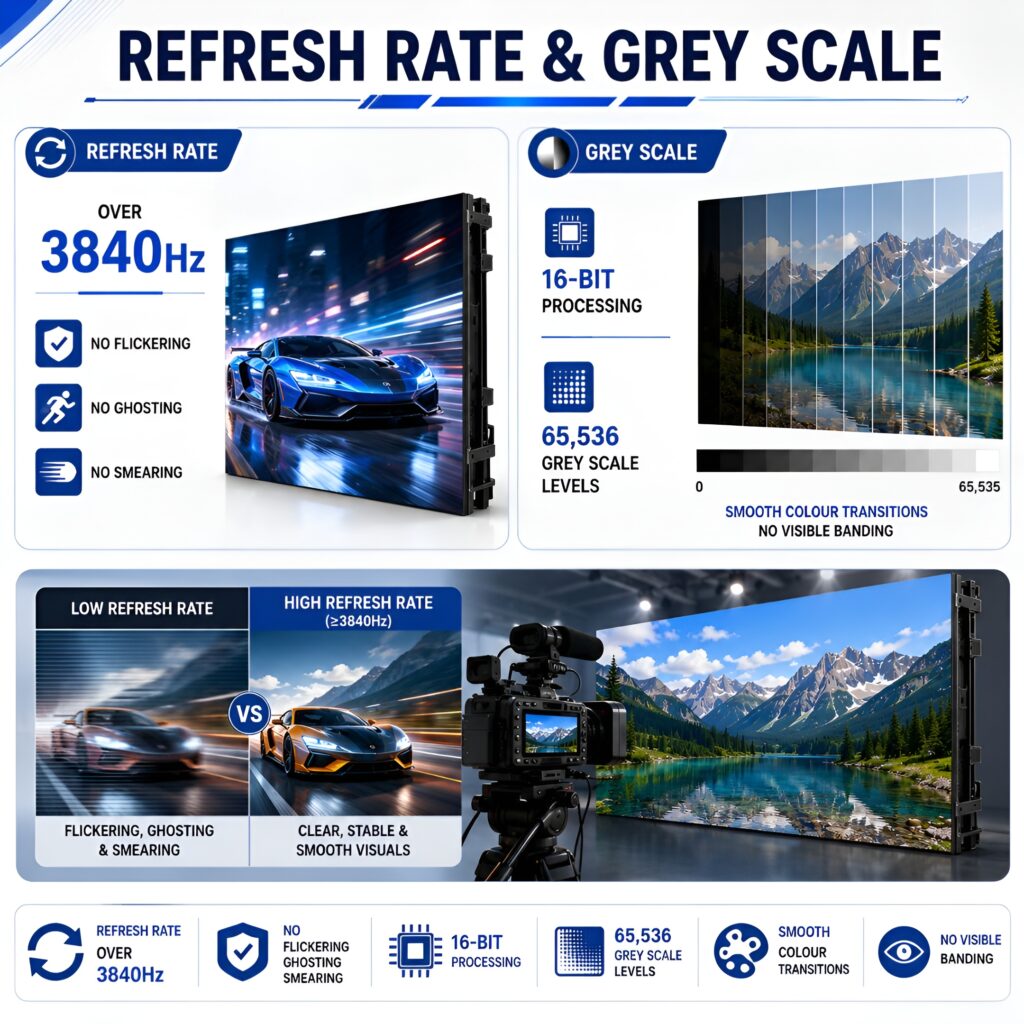

Refresh Rate and Grey Scale
One of the strongest points of this display is its refresh rate of over 3840Hz, which prevents flickering, ghosting and smearing — especially important when the screen is being filmed or recorded on camera. The 16-bit processing and 65,536 grey scale levels ensure smooth colour transitions with no visible banding.

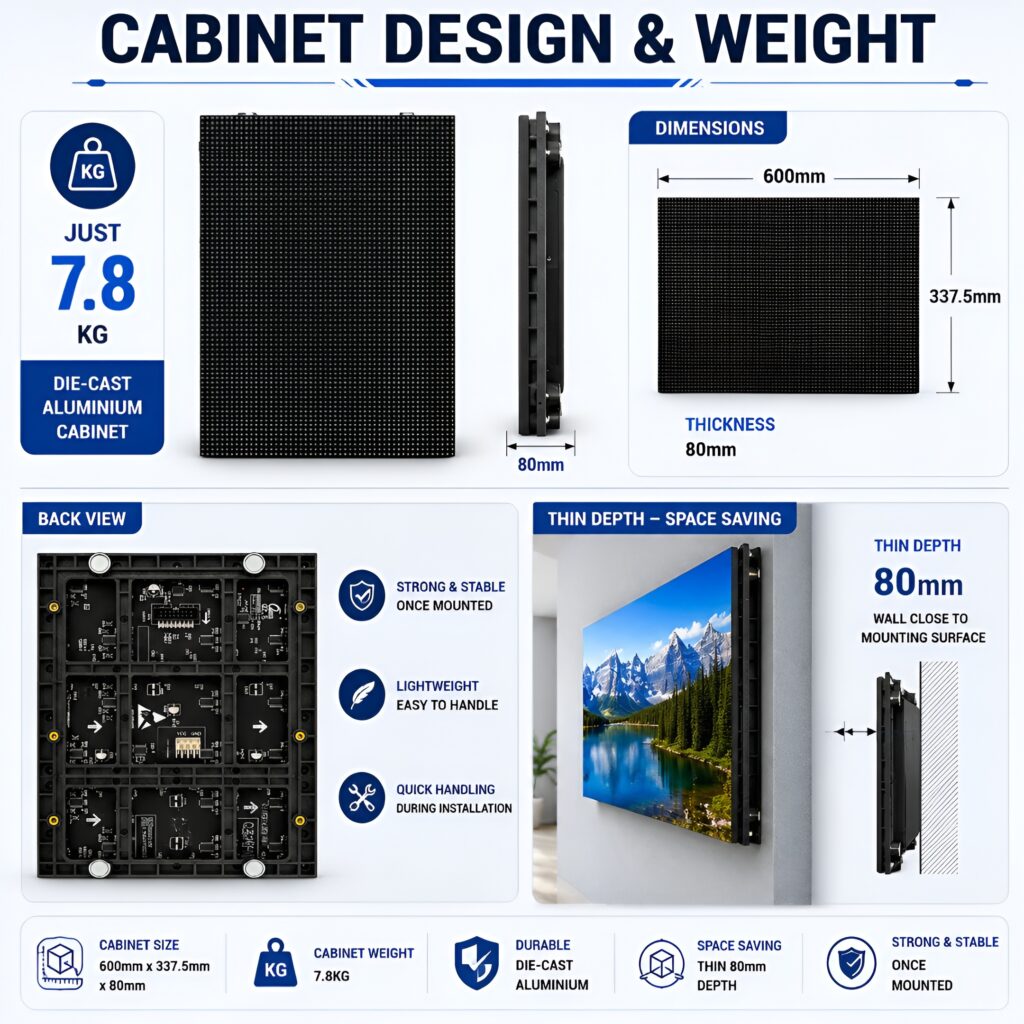

Cabinet Design and Weight
Each die-cast aluminium cabinet weighs just 7.8kg and measures 600mm x 337.5mm x 80mm in size, making the panels light enough for quick handling during installation while remaining strong and stable once mounted. The thin 80mm depth also allows the wall to sit close to the mounting surface, saving valuable indoor space.
Full Technical Specifications – P1.25 Indoor LED Display
| Parameter | Specification |
|---|---|
| Pixel Configuration | SMD0808 / SMD1010 |
| Pixel Pitch | 1.25 mm |
| Pixel Density | 640,000 dots/m² |
| Module Resolution | 160 × 135 pixels |
| Module Size | 200 mm × 168.75 mm |
| Module Weight | 0.4 kg |
| Maximum Power Consumption | 40 W |
Electrical and Environmental Specifications
| Parameter | Specification |
|---|---|
| Brightness | 500 – 1000 nits |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 160° Horizontal / 160° Vertical |
| Grey Scale | 65,536 |
| Refresh Rate | ≥ 3840 Hz |
| Colour Temperature | 3200K – 9300K (Adjustable) |
| Power Supply | AC 90–264V, 47–63Hz |
| Frame Rate | 50Hz & 60Hz |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10% – 85% RH |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | 10% – 85% RH |
| Certifications | CCC, TUV-CE, ETL |
Where Can You Use a P1.25 Indoor LED Screen?
Thanks to its fine pixel pitch and bright, sharp visuals, the P1.25 indoor LED display works well in:
– Corporate boardrooms and conference halls
– Control rooms and command centres
– Retail stores and showrooms
– TV broadcast studios and news sets
– Airports, metro stations and banks
– Auditoriums and event stages
– Museums and exhibition centres
Because the panels are viewed from short distances in most of these settings, the fine pixel pitch keeps text and graphics crisp instead of appearing pixelated.
What Makes Our P1.25 LED Display Better?
Premium LED Chips
Romio Technologies uses trusted, high-reliability LED chips known for wide viewing angles and colour consistency. This helps the screen maintain uniform brightness and colour accuracy across the entire wall, even after long hours of continuous use.
Trusted Driver ICs
Our panels run on well-known driver ICs that are chosen specifically for stable performance and smooth image output, reducing the chance of flickering or dead pixels over the display’s lifespan.
Front Maintenance Access
Every cabinet is designed for front-side servicing, which means technicians can repair or replace a module without removing the entire wall from behind. This saves significant time and labour during maintenance, especially for walls mounted against a fixed structure.
Wide Viewing Angle
With a 160-degree viewing angle both horizontally and vertically, the screen delivers a consistent picture no matter where the viewer is standing in the room.
P1.25 vs Other Pixel Pitches Which One Should You Choose?
Pixel pitch determines how close a viewer can stand to the screen while still seeing a clear, smooth image. A smaller number means a sharper picture at close range. P1.25 sits in the fine pixel pitch category, best suited for viewing distances starting around 1 to 1.5 metres. If your audience typically views the screen from more than 3 metres away, a larger pitch like P2.5 or P3 may be more cost-effective. Our team at Romio Technologies can help you calculate the ideal pixel pitch based on your room size and typical viewing distance.
How to Install and Maintain a P1.25 LED Wall
Installing a fine pixel pitch LED wall requires careful planning of the mounting frame, power distribution and control system. Since the cabinets are lightweight at 7.8kg each, installation teams can mount and align panels quickly using standard cabinet locking systems. Once installed, routine maintenance mainly involves dust cleaning and occasional module checks — made easier by the front-access design. Romio Technologies provides installation support and training so your in-house team can manage basic upkeep independently.
FAQ (Frequently Asked Questions)
Q1. What is the pixel pitch of a P1.25 indoor LED display?
Q2. What is the ideal viewing distance for a P1.25 LED screen?
Q3. How bright is the P1.25 indoor LED display?
Q4. Is the P1.25 LED wall easy to maintain?
Q5. Can the P1.25 LED display be customised in size?
Q6. What is the refresh rate of this LED display, and why does it matter?
Q7. Does Romio Technologies provide installation support?
Book Your Free Consultation Today
Upgrade Your Indoor Display with Romio Technologies
