INDOOR P2 LED DISPLAY SOLUTION

P2 LED Module

Ultra Clear Visuals for Your Business

Bring your brand to life with a high-resolution P2 LED Screen for restaurants, hotels, retail stores, corporate offices, malls, auditoriums and more.

8,000+ Installations | 36+ Cities | 3 Years On-Site Warranty

P2 LED Module High-Resolution Indoor LED Display Solution

Create sharp, vibrant and professional indoor visual experiences with a high-quality P2 LED Module from Romio Technologies. Designed for applications where image clarity, smooth video playback and close viewing distances are important, our indoor P2 LED solution delivers detailed visuals with a fine 2mm pixel pitch.

Whether you need an LED screen for a restaurant, hotel, showroom, retail store, corporate office, auditorium, conference room, shopping mall or brand activation, Romio Technologies can design and install a solution according to your required size, shape and application.

Our P2 LED Module uses SMD 1R1G1B full-color LED technology, high refresh rate, high contrast and wide viewing angles to create an immersive visual experience. The solution can be customized for different indoor environments and installed across India.

With 8,000+ installations, service coverage across 36+ cities, and a 3-year on-site warranty, Romio Technologies provides complete digital display solutions from consultation and design to installation and after-sales support.

What Is a P2 LED Module?

A P2 LED Module is an LED display module with a 2mm pixel pitch. Pixel pitch is the distance between the centers of two adjacent pixels. A smaller pixel pitch means pixels are placed closer together, which generally provides higher pixel density and better image detail when viewed from a close distance.

A P2 module is particularly suitable for indoor environments where viewers may stand relatively close to the screen. It can display text, images, graphics, advertisements, presentations, videos and other digital content with high visual detail.

The module uses RGB full-color technology, combining red, green and blue LED chips to reproduce a wide range of colors. The black LED and PCB design can also help reduce unwanted reflections and improve perceived contrast in indoor environments.

Romio Technologies can use P2 LED modules to build a complete P2 LED Screen in different dimensions and configurations based on your available wall space and viewing requirements.

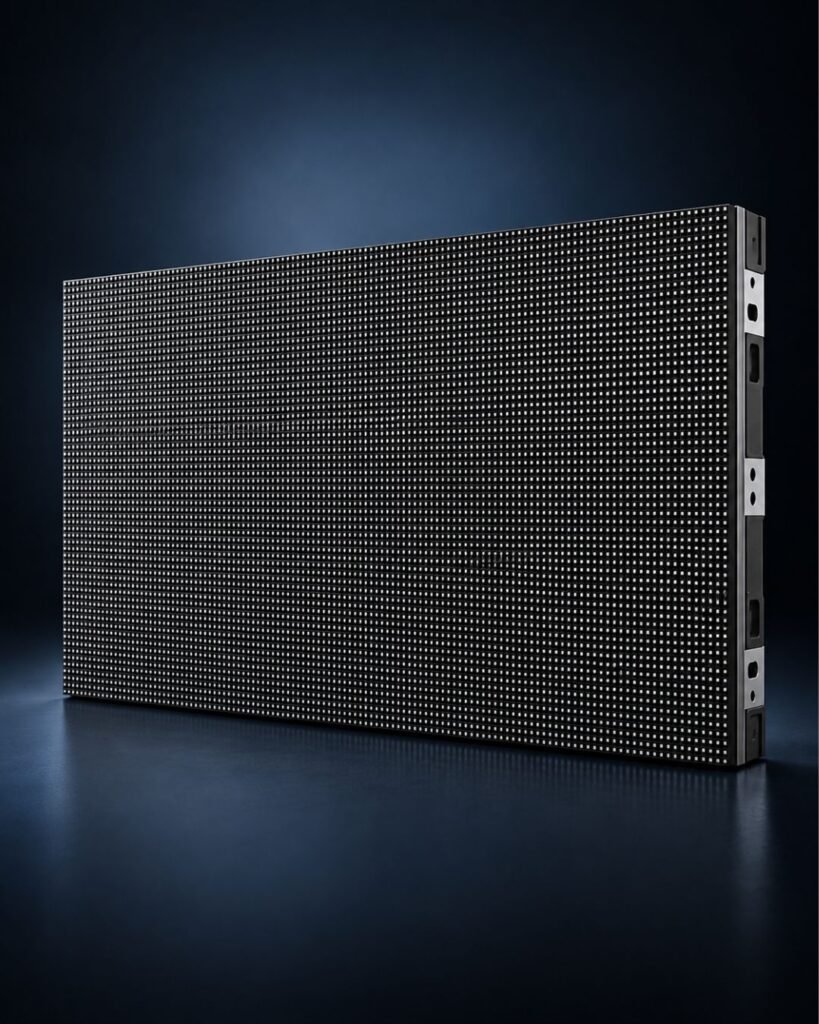

Meet the P2 LED Module

Designed for Visual Impact

Built for premium indoor displays where sharp details, smooth video and strong color performance matter.

2mm Pixel Pitch
SMD 1R1G1B Full Color
Up to 3840Hz Refresh Rate
5000:1 Contrast Ratio
600–1,000 Nits Brightness
Up to 160° Viewing Angle
High Grey Scale
Reliable Driver IC

Technical Details

P2 LED Screen Specifications

The following P2 LED Screen Specifications are based on the indoor P2 solution offered by Romio Technologies.

Specification	Details
Product Type	Indoor P2 LED Module
Pixel Pitch	2mm
LED Type	SMD 1R1G1B Full Color
Module Size	320 × 160mm / 256 × 128mm
Module Resolution	12,800 dots / 8,192 dots
Grid Matrix	160 × 80 / 128 × 64
Brightness	600–1,000 nits
Refresh Rate	1920Hz–3840Hz
Scan Mode	1/32 or 1/40
Viewing Angle	Up to 160°
Input Voltage	DC 5V
Contrast Ratio	Up to 5000:1
Grey Scale	Up to 14-bit
Application	Indoor
LED Encapsulation	SMD 3-in-1
Driver IC	High-stability driver IC options
Installation	Custom Size & Design
Warranty	3 Years On-Site
Service Coverage	Pan India

Actual configuration can vary depending on the final screen size, controller, cabinet structure, installation environment and project requirements.

Key Benefits

Why Choose P2 LED Module?

Fine 2mm Pitch

Detailed visuals for close-viewing indoor environments.

High Resolution

Sharp text, images and videos for premium presentation.

3840Hz Refresh

Smooth playback and camera-friendly performance.

High Contrast

Up to 5000:1 contrast for deeper visual separation.

Optimal Brightness

600–1,000 nits designed for indoor viewing.

Wide Viewing

Up to 160° viewing coverage.

Full Color

RGB SMD technology for vibrant content

Reliable Driver IC

Stable display performance and color uniformity.

P2 LED Module Features

The P2 LED Module combines several technologies to provide reliable indoor display performance.

SMD 3-in-1 Encapsulation

The SMD 3-in-1 design integrates red, green and blue LED chips into each pixel package. This helps create a compact pixel structure and full-color visual output.

High-Quality Driver IC

Stable driver IC technology helps maintain consistent brightness and color performance across the display. It is particularly important when multiple modules are joined to create a large LED wall.

Black LED and PCB Design

A black surface structure can help reduce reflected ambient light and improve the perceived depth of images, particularly when displaying dark content.

High Grey Scale

High grey-scale performance allows the display to reproduce more shades between dark and bright areas. This can help improve gradients, shadows and overall image depth.

Flicker-Reduced Visual Performance

The high refresh rate is suitable for video-based content and environments where LED screens may be photographed or recorded using cameras.

Easy Module Connection

Standardized power and data connections make module installation and maintenance more convenient for professional LED display technicians.

Difference Between P2 and P3 LED Wall

One common question from customers is the difference between P2 and P3 LED wall solutions.

The primary difference is pixel pitch.

A P2 LED display has a 2mm pixel pitch, while a P3 LED display has a 3mm pixel pitch. Because P2 places pixels closer together, it generally provides higher pixel density and greater image detail at close viewing distances.

A P3 LED wall can be a practical option when the audience is positioned farther away or when the project has different budget and viewing requirements.

Pixel Pitch Guide

P2 vs P3 LED Wall

P2 uses a 2mm pixel pitch while P3 uses 3mm. Your ideal choice depends on viewing distance, screen size and project requirements.

Feature	P2 LED	P3 LED
Pixel Pitch	2mm	3mm
Pixel Density	Higher	Lower
Close Viewing	Better suited	Suitable
Image Detail	Higher	Good
Indoor Use	✓	✓

One Screen. Many Possibilities.

Industries we serve across India.

Restaurants & Sweet Shops

Hotels & Resorts

Retail Stores & Showrooms

Hospital & Clinics

Shopping Malls

Jewellery Shop

Cafe & Bars

Banquets

P2 LED Module Price

The P2 LED Module Price depends on several project factors, so there is no single fixed price for every installation.

The final project cost can depend on:

Total LED screen size
Number of LED modules required
LED quality and configuration
Cabinet or frame structure
Controller and receiving cards
Power supply
Installation requirements
Mounting structure
Content management requirements
Transportation and project location
Custom design requirements

If you are searching for P2 LED Module Price, share your required screen width and height with Romio Technologies. Our team can calculate the approximate module requirement and provide a project-specific quotation.

P2 LED Module in Delhi – Installation Across India

If you are searching for a P2 LED Module in Delhi, Romio Technologies provides complete LED display solutions from its Delhi office.

Office Address:
C 69/6A, Block – C, Backside of Oreanns Banquet, Rama Road, Kirti Nagar, Delhi, India – 110015.

Our team provides consultation, display planning, customization, installation and after-sales support.

Although we are based in Delhi, our installation and service network supports customers across India.

With 8,000+ installations and coverage across 36+ cities, Romio Technologies works with businesses looking for professional digital display solutions.

Built Around Your Space

Your Space. Your Size. Your LED Screen.

Choose the screen width, height, aspect ratio and installation approach according to your project. Romio Technologies provides customized digital display solutions across India.

Custom Size & Design
Flexible Installation Options
Project-Based Configuration
Pan India Installation

Simple Process

P2 LED Module Installation process

01 Tell Us

Share your location, screen size and application.

02 Get the Solution

Our team recommends the suitable configuration.

03 Customize & Install

We prepare and install your LED display.

04 Start Displaying

Show videos, promotions and brand content.

Delhi & Pan India

P2 LED Module in Delhi & Across India

Romio Technologies provides consultation, customization, installation and support for indoor LED display projects across India.

Office Address

C 69/6A, Block – C, Backside of Oreanns Banquet, Rama Road, Kirti Nagar, Delhi, India – 110015

8,000+

Installations

36+

Cities

3 Years

Warranty

Pan India

Support

Frequently Asked Questions

What is a P2 LED Module?

A P2 LED Module is an LED display module with approximately 2mm pixel pitch. It is commonly used for indoor LED screens where high image detail and close viewing are important.

What is P2 in LED walls?

P2 indicates a pixel pitch of approximately 2mm between adjacent pixels. A smaller pixel pitch generally provides higher pixel density and better detail at closer viewing distances.

What is the price of a P2 LED panel?

The price depends on panel/module size, LED components, screen dimensions, controller, cabinet, installation and project requirements. Contact Romio Technologies for a project-specific quotation.

What are the P2 LED Screen Specifications?

Typical specifications include 2mm pixel pitch, 600–1,000 nits brightness, up to 3840Hz refresh rate, SMD 1R1G1B LEDs, up to 160° viewing angle, DC 5V input and up to 5000:1 contrast ratio.

What is the difference between P2 and P3 LED wall?

P2 has a 2mm pixel pitch while P3 has a 3mm pixel pitch. P2 generally provides higher pixel density and is more suitable when viewers are closer to the screen.

Is P2 LED suitable for indoor use?

Yes. P2 is widely suitable for indoor applications such as hotels, restaurants, retail stores, corporate offices, auditoriums, malls and conference rooms.

Can I get a customized P2 LED Screen?

Yes. Romio Technologies can design LED screens according to the required width, height, aspect ratio and installation requirements.

Can a P2 LED Screen be waterproof?

The P2 module specified on this page is designed for indoor use. Waterproofing depends on the complete LED display structure, enclosure and components selected for the project. For outdoor or high-moisture applications, a suitable outdoor-rated LED solution should be selected.

Does Romio Technologies provide installation?

Yes. Romio Technologies provides professional LED display installation and support across India.

What warranty is available?

Romio Technologies provides a 3-year on-site warranty for applicable LED display solutions, according to the final project terms.
